Control stations of the SU PP Etalon series
Product documents
Purpose and scope of applicationя
SU PP ensures the operation and protection of the pumping unit. The current of the submersible electric motor in the SU PP series stations is measured in the primary circuit of the step-up transformer and converted into the operating current of the motor by the controller according to a special program. This eliminates the need to insert high-voltage cables from the secondary winding of the step-up transformer TMPN into the station, which greatly simplifies the installation of the control system and ensures greater safety of maintenance.
Functional capabilities
- Connection terminals located at the top of the station. The cabinet design and special cable clamp allow for connections using both multiple KPBP-type cables and larger-gauge cables.
- The controller has a simple, intuitive interface for easy operation.
- Possibility of additional installation of a commercial electricity meter of the SET-4M or Mercury type with the integration of readings into the controller and the output of information to the external RS-485 interface.
- Transferring an archive using a standard industrial USB flash drive (allows you to transfer data to a computer without additional devices).
- TMS panel for installation without modification of ground units from various manufacturers.
- Works with various types of TMS both via a serial digital port and via analog inputs.
- Optionally, three-phase 380V portable current receiver sockets are installed, equipped with a lock and a circuit breaker.

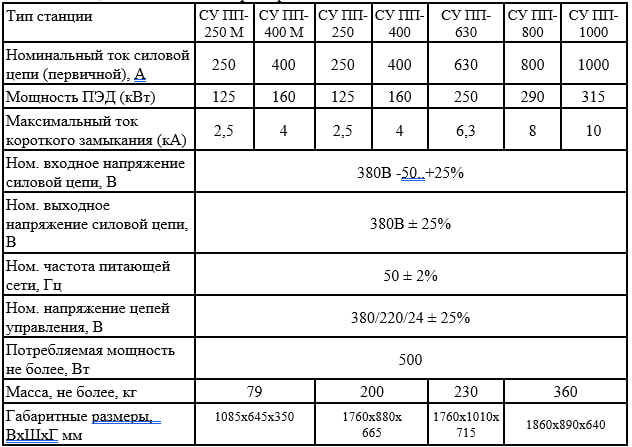

Main Features
-
Supply voltage, V
380 ±30%
-
Nominal current of the power circuit, A
400 - 630 - 800 - 1000
-
Temperature range, °C
-60...+50
-
Power circuit control type
contactor
-
Degree of protection
lP43
-
Overall dimensions, mm, no more than
1750x975x640 1950x1180x630
-
Weight, no more than, kg
200 kg; 320 kg
Optional
-12/18-pulse version of the rectifier SU
- three-phase 380V portable current receiver sockets are installed, equipped with a lock and a circuit breaker.
