Trailer — mobile complex for well development SU ChR Etalon
Product documents
Purpose and scope of application
• use in areas of new well development, well commissioning and well research;
• wedging of installations - starting the ESP when it is impossible to start it with other types of SU due to jamming (limited by overload protection);
• control and protection of the UESN submersible electric motor by analogy with the traditional CR SU devices.
The built-in "reverse bypass" allows you to disconnect the PAD with a "direct start" with an automatic change in the order of phase alternation, followed by switching to a frequency converter and the possibility of further switching back to the network.

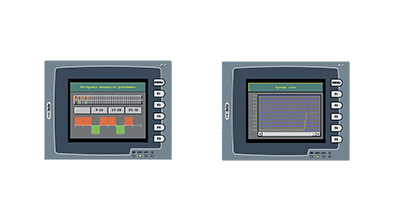

To adjust the "wedging", a separate graphical display with touch control is provided, which contains an intuitive menu of modes with the ability to change parameters without switching to other windows of the main menu.
Functional capabilities
- • use in areas of new well development, well commissioning and well exploration; • wedging of ESP start-up installations when it is impossible to start it with other types of SU due to jamming (limited by overload protection); • control and protection of the ESP submersible electric motor by analogy with traditional CR SU devices. The built-in "reverse bypass" allows you to disconnect the PAD with a "direct start" with an automatic change in the order of phase alternation, followed by switching to a frequency converter and the possibility of further switching back to the network. To adjust the "wedging", a separate graphical display with touch control is provided, which contains an intuitive menu of modes with the ability to change parameters without switching to other windows of the main menu.
- The mobile unit is designed and manufactured in accordance with the climatic requirements of regions with moderately cold climates and the Far North.
- The operator's compartment provides comfortable working and resting conditions for service personnel. Heating is provided by an independent diesel "Airtronic" heater using the tractor's on-board electrical system.
Main Features
-

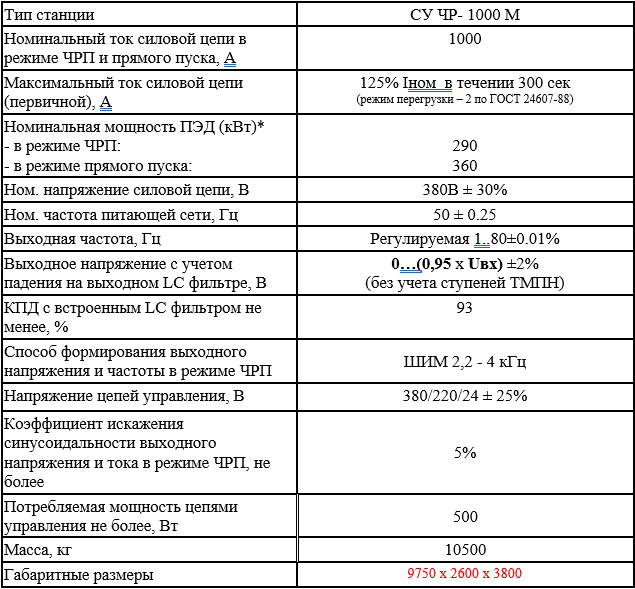

Nominal output current of the control system
1000 A
-
Output frequency adjustment range
1...80 Hz
-
Overall dimensions, no more than
7870x2500x3800
-
Weight, no more than, kg
10500
Distinctive Features
- 12/18-pulse version of the rectifier SU
Optional
Platform on a wheeled chassis, 6 or 8 meters.
A climate control box for protecting personnel from adverse environmental factors, equipped with heating and ventilation, and including a sofa and work desk.
Control station SU ChR 1000 ETALON.
Step-up transformer TMPNG1000/6
Drums with flexible cable for connecting the supply voltage and connecting the PED.
A box for connecting a flexible cable from the SU ChR 1000 M with a KRBK cable from the ESP. A box for connecting a flexible cable from the SU ChR 1000 M with a KRBK cable from the ESP.
